The S62...B polarised retroreflex sensor has an output status of N.O. closed and N.C. open. It has a stable operating condition with a signal received that has a safety margin higher than 30% respect to the output switching value. The sensor can be positioned using the three housing holes and screws, with various orientable fixing brackets available. It requires a power supply of 10-30Vdc, and has PNP or NPN N.O. / N.C. outputs with a maximum output voltage of 30Vdc and maximum output current of 100mA.

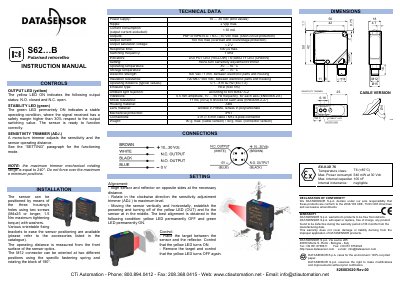

This document provides installation and setting instructions for the Datasensor S62 series of polarised retroreflex sensors. It details the use of controls such as the output LED, stability LED, and various trimmers for sensitivity and distance adjustment. The manual explains how to align the sensor and reflector for optimal operation and how to configure background suppression.
| Power supply | 10...30 VDC |
|---|---|
| Operating distance | 30...300 mm (typical) |
| Output current | 100 mA max |
| Mechanical protection | IP67 |
| Operating temperature | -10...55 °C |
| Housing material | ABS |
The green STABILITY LED permanently ON indicates a stable operating condition where the signal received has a safety margin higher than 30%.
The sensor can be positioned using two screws (M4x25 or longer) with washers through the three housing holes.
The maximum trimmer mechanical rotating range is equal to 240°.
