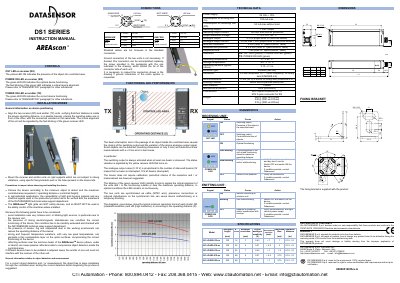

DS1 series instruction manual. This series of products has a long detection distance and a large detection area, suitable for industrial automation, warehouse logistics, food processing, safety protection and other fields.
This document provides installation and operation instructions for the Datasensor DS1 Series AREAscan light grid. It details the alignment of the receiver and emitter units, mounting precautions, and connection wiring for both analogue and switching outputs. The manual explains how to interpret LED indicators for device status and diagnostics.
| Power supply | 24 Vde + 15% |
|---|---|
| Emission type | Infrared (880 nm) |
| Mechanical protection | IP65 |
| Response time | 1 ms |
Small objects can be detected reaching dimensions of only 5 mm.
The device can detect small objects reaching dimensions of only 5 mm.
The typical operating distance ranges up to 2.7 meters.
The switching output can handle a maximum current of 100 mA.
