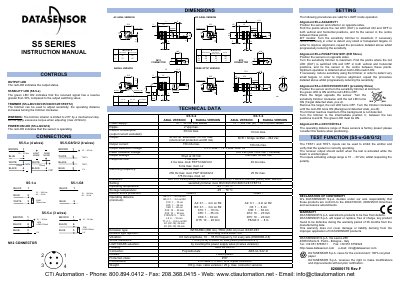

S5 series instruction manual, introduces the control, connection, dimensions and other information of the series products.
This document provides operating instructions for the Datasensor S5 Series of infrared proximity sensors. It details the function of status LEDs (Output, Stability, Power On) and describes various connection configurations including 4-wire, 3-wire, axial, radial, and fiber optic versions.
The manual outlines specific alignment procedures for different sensor models to ensure optimal detection of targets. It also includes a section on the test function for verifying system operation and lists comprehensive technical data regarding power supply, output types, response times, operating distances, and environmental ratings.
| Power supply (Axial) | 10...30 Vac |
|---|---|
| Output current | 150 mA max. |
| Response time (F8/F12/G8/G12) | 2 ms max. |
| Operating temperature | -25...+55°C |
| Protection class | IP67 |
The green Stability LED indicates that the received signal has a reserve greater than 30% compared to the output switching value.
Sensitivity can be adjusted using the trimmer; turning it clockwise increases the operating distance.
Datasensor warrants its products free from defects and will repair or replace defective units within 36 months of the manufacturing date.
