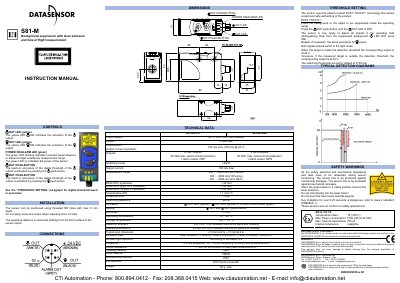

This document is the instruction manual for the S81-M background suppressor with laser emission and time of flight measurement. The product features include a yellow LED indicator for output activation, a green LED indicator for power and signal absence, and a push-button for digital threshold setting using EASY TOUCH™ technology.
This document provides the instruction manual for the Datasensor $81-M Background Suppressor with Laser Emission Time of Flight Measurement and the $81-Y Distance Sensor. Both models utilize Class 2 laser emission and feature patent-covered EASY TOUCH™ technology for rapid self-setting of digital thresholds.
| Power supply | 24 +/- 20% VDC (limit values) |
|---|---|
| Consumption | 120 mA max (100 mA @ 24 V) |
| Measurement range ($81-M) | 300 ... 4000 mm (90% white) |
| Response time | 5 ms |
| Switching frequency | 80 Hz |
| Mechanical protection | IP67 |
| Connections | M12 5-pole connector |
Place the background or object to be suppressed inside the operating range and press the & OUT push-button until the & OUT LED is OFF.
The maximum output current is 100 mA.
Yes, the sensor requires a warm-up time of 15 to 18 minutes depending on the model.
