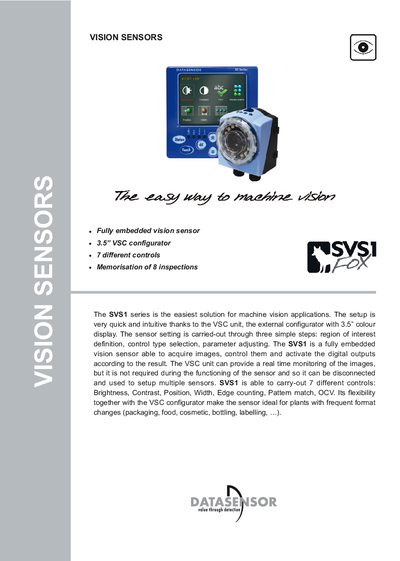

The SVS1 series is the easiest solution for machine vision applications. Thanks to the VSC unit, the external configurator with 3.5” colour display, the setup is very quick and intuitive. The sensor setting is carried-out through three simple steps: region of interest definition, control type selection, parameter adjusting. The SVS1 is a fully embedded vision sensor able to acquire images, control them and activate the digital outputs according to the result. The VSC unit can provide a real time monitoring of the images, but it is not required during the functioning of the sensor and so it can be disconnected and used to setup multiple sensors. SVS1 is able to carry-out 7 different controls: Brightness, Contrast, Position, Width, Edge counting, Pattern match, OCV. Its flexibility together with the VSC configurator make the sensor ideal for plants with frequent format changes (packaging, food, cosmetic, bottling, labelling, …).
The SVS1 series is a fully embedded vision sensor that acquires images, processes them, and activates digital outputs based on the result. Configuration is performed via the VSC unit with a 3.5" colour display, requiring no PC, and follows three intuitive steps: region of interest definition, control type selection, and parameter adjustment.
The manual details hardware specifications, power requirements, connector pinouts, and available accessories such as mounting brackets and cables. It also describes the seven control functions (brightness, contrast, position, width, edge counting, pattern match, OCV) and typical applications in packaging, bottling, food, cosmetics, and other industries.
| Image sensor resolution | 640 x 480 |
|---|---|
| Display | 3.5" colour display |
| Digital outputs | 3 PNP outputs |
| Output current | 100 mA max |
| Power supply voltage | 24 Vdc ±10% |
| Power consumption | 300 mA @ 24 Vdc |
| Frame rate | 60 fps |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -25 °C to +70 °C |
| Mechanical protection (sensor) | IP50 |
| Sensor weight | 125 g |
| VSC weight | 170 g |
Configuration is done exclusively via the VSC unit without a PC, using three steps: region of interest definition, control type selection, and parameter adjustment.
The sensor operates from –10 °C up to +50 °C.
