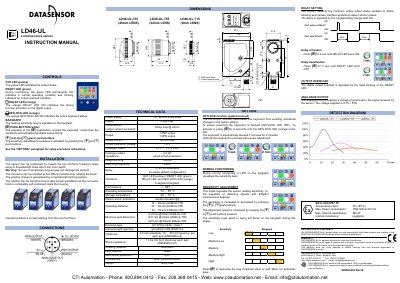

LD46-UL Luminescence sensor INSTRUCTION MANUAL, introduces the control method, installation method, technical parameters and other information of the sensor
This document is an instruction manual for the Datasensor LD46-UL luminescence sensor. It details the control indicators, including LEDs for output status, delay, and keylock functions. The guide explains how to adjust sensitivity using push-buttons and describes the installation process involving specific housing holes or threaded M5 holes.
| Power supply | 15...30 Vdc limits value |
|---|---|
| Ripple | 2 Vpp max. |
| Consumption (output current excluded) | 50mA @ 24V |
| Output current | 100 mA max. |
| Operating temperature | -10 ... 55°C |
| Storage temperature | -20 ... 70°C |
| Mechanical protection | IP67 |
| Connections | M12 5-pole connector |
| Weight | 180 g. max. |
Press the SET button for 5 seconds until the orange KEYLOCK LED turns ON.
The READY LED blinks rapidly.
