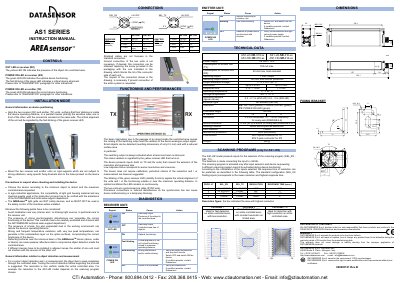

This manual describes the design, functions, use and installation of AS1 series products. AS1 series products are a wireless light grid technology product that is used to detect the presence of objects within the operating distance.
This document provides instructions for the installation and operation of the Datasensor AS1 Series light grid sensors. It details how to align the emitter (TX) and receiver (RX) units, mount them on rigid supports, and connect them using M12 connectors. The manual explains LED status indicators for diagnostics and lists precautions regarding electromagnetic disturbances, lighting conditions, and environmental factors like smoke or dust.
| Power supply | 24 Vdc + 15% |
|---|---|
| Consumption on emitter unit | 150 mA max. |
| Consumption on receiver unit | 40 mA max, load excluded |
| Switching output current | 100 mA; short-circuit protection |
| Operating temperature | 0...+ 50°C |
| Storage temperature | -25...+ 70 °C |
| Operating distance (AS1-LD) | 0.3 - 2.1 m |
| Operating distance (AS1-HD) | 0.8...3 m |
| Emission type | INFRARED (880 nm) |
| Controlled height | 100 mm |
| N° beams | 16 I 6 |
| Mechanical protection | IP65 (EN 60529) |
It indicates a critical device alignment or functioning near the maximum operating distance.
No, they are not safety devices and must not be used in the safety control of machines.
Small objects can be detected reaching dimensions of only 0.5 mm.
