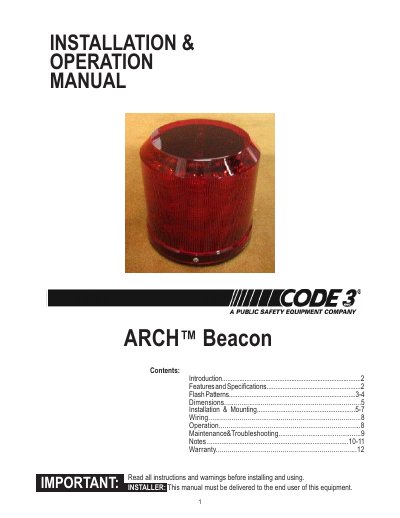

This manual provides installation, wiring, operation, and troubleshooting instructions for the ARCH Beacon, a weatherproof LED warning light.
The ARCH Beacon is a weatherproof LED-based warning light containing 36 high-intensity LEDs in three stacked rows. It features various flash patterns, including NFPA and ECE-65 compliant modes, and is designed for use on emergency vehicles. The device operates on a DC voltage of 11V to 16V and includes reverse polarity protection.
| Operating Voltage | DC 11V-16V |
|---|---|
| Reverse Polarity Protection | Protected |
| Operating Current (Avg) | 3.75 amps |
| Operating Current (Max) | 7.5 amps |
| Weight | 4.5 lb |
A maximum of 8 lights may be synchronized.
Check for loose connections, reversed power wires, or damaged cabling, and replace the beacon module if defective.
Yes, the beacons are designed to be maintenance free.
