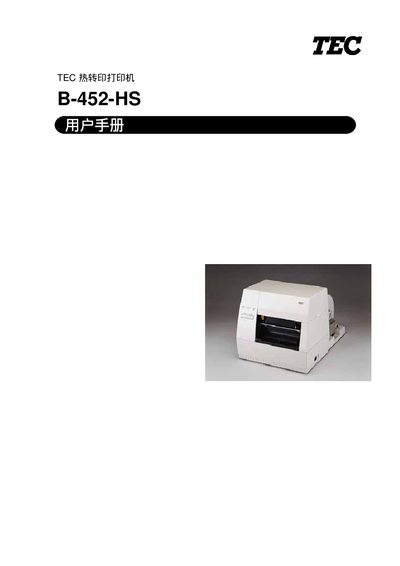

TEC B-452-HS thermal transfer printer user manual, this manual introduces the operation method, precautions and safety instructions of the printer
This manual provides safety guidelines, installation steps, and operating instructions for the Toshiba TEC B-452-HS heat‑transfer printer. It includes detailed specifications, paper and ribbon handling, and troubleshooting procedures.
The document also outlines recommended preventive maintenance, optional accessories such as the cutter and peel‑off module, and contact information for authorized service agents. This manual is written in Chinese.
| Model | B-452-HS |
|---|---|
| Supply Voltage | 220‑240 V, 50 Hz |
| Power Consumption | 0.9 A (max 150 W), idle 0.12 A (17 W) |
| Operating Temperature | 5 °C ~ 40 °C |
| Weight | 5.0 kg (printer only) |
| Print Speed | 50.8 mm/s (2 in/s) |
| Maximum Print Width | 103.6 mm |
| Label Width Range | 20 mm ~ 107 mm |
| Ribbon Width Range | 60 mm ~ 110 mm |
| Interfaces | RS‑232 serial, parallel, USB |
Toshiba TEC recommends contacting the authorized service agent for a cleaning once a year.
Use a 220‑240 V, 50 Hz supply and do not connect the printer to a source with a different voltage.
