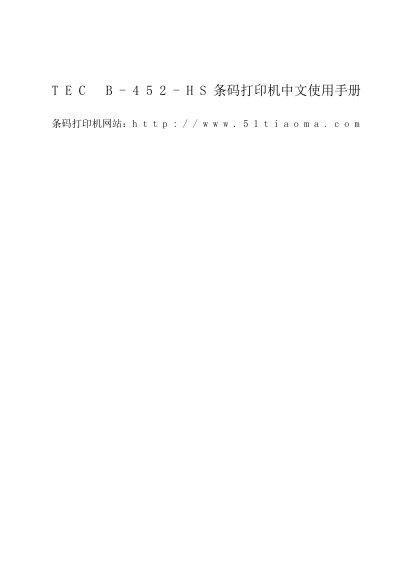

TEC B-452-HS Barcode Printer User Manual
This manual provides a complete guide to the TEC B-452-HS barcode printer. It covers the product’s structure, technical specifications, installation steps, connection details, DIP switch settings, and software/hardware configuration.
The document also includes operating instructions, maintenance tips, and a troubleshooting section that lists common error messages and their resolutions, helping users keep the printer running reliably. This manual is written in Chinese.
TEC B-452 specifications
| Power Supply | 220‑240 V, 50 Hz, 0.9 A (max 0.12 A, 17 W) |
|---|---|
| Printing Resolution | 23.6 µm/mm (600 dpi) |
| Dimensions (L×W×H) | 268 mm × 244 mm × 198 mm |
| Interface Options | RS‑232C, Centronics, I/O |
All TEC B-452 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- TEC B-452-HS Barcode Printer User Manual 31 p
- TEC B-452 Barcode Printer User Manual 2 p
- Toshiba TEC B-452-TS Heat Transfer Printer User Manual 28 p
- Toshiba B-452-TS Heat Transfer Printer User Manual 28 p
- Toshiba TEC B-452-HS Heat Transfer Printer User Manual 31 p
- Toshiba TEC B-452-HS Printer User Manual 31 p
- Toshiba B-452-TS Heat Transfer Printer User Manual 28 p
- Toshiba TEC B-452-HS Heat Transfer Printer User Manual 31 p
Questions answered in these manuals
What does the HEAD ERROR message mean?
It indicates a head error, shown as code [SEC]HD001[LF][NUL] in the error log.
What printing methods does the TEC B-452 support?
It supports both thermal transfer and direct thermal printing.
What is the maximum print resolution of the TEC B-452?
The printer provides a resolution of 300 dpi (12 点/mm).
What are the power requirements for the B-452-TS printer?
The printer requires a supply voltage of 220‑240 V at 50 Hz and draws up to 0.41 A (maximum 74 W).
What safety precautions must be taken before operating the printer?
Do not touch moving parts, keep fingers, jewelry and clothing away, ensure the power switch is OFF before maintenance, and avoid connecting a power source with a voltage different from 220‑240 V, 50 Hz.
From: Toshiba TEC B-452-HS Heat Transfer Printer User Manual
What should you do if the printer falls or shows signs of damage?
Turn off the power, unplug the power cord, and contact an authorized Toshiba TEC service agent for assistance.
From: Toshiba TEC B-452-HS Heat Transfer Printer User Manual
