Shanghai Barcode Network is a company that provides barcode-related products and services. They offer a variety of barcode-related products, including barcode printers, barcode scanners, and label printing software. Among them, the TEC B-452 is an economical high-definition printer with a printing resolution of 300DPI. It is suitable for printing needs in various industries such as product identification, clothing industry, annual inspection tags, and ticket printing. The printer also has fast printing speed and large capacity for carbon ribbons and paper rolls, making it convenient for users.
The TEC B-452 is an economical high‑resolution barcode printer designed for a variety of industries such as logistics, apparel, and ticketing. It offers 300 dpi (12 点/mm) printing quality and supports both thermal transfer and direct thermal media, allowing flexible label production.

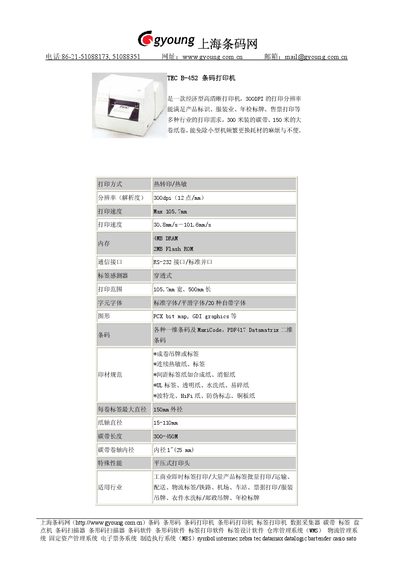

Key technical features include a maximum print speed of 105.7 mm/s, standard speeds ranging from 30 mm/s to 101 mm/s, 4 MB DRAM and 2 MB Flash ROM memory, RS‑232 and standard parallel communication interfaces, and a penetration‑type label sensor. The printer can handle media widths from 15 mm to 110 mm, ribbon lengths of 300–450 m, and a maximum label diameter of 10 mm. This manual is written in Chinese.
| Resolution | 300 dpi (12 点/mm) |
|---|---|
| Maximum Print Speed | 105.7 mm/s |
| Standard Print Speed Range | 30 mm/s – 101 mm/s |
| Memory | 4 MB DRAM, 2 MB Flash ROM |
| Communication Interface | RS‑232 and standard parallel port |
| Label Sensor | Penetration type |
| Print Width | 105.7 mm |
| Supported Media Width | 15 mm – 110 mm |
| Ribbon Length | 300 m – 450 m |
It supports both thermal transfer and direct thermal printing.
The printer provides a resolution of 300 dpi (12 点/mm).
It includes an RS‑232 interface and a standard parallel port.
The printer accepts media widths from 15 mm up to 110 mm.
