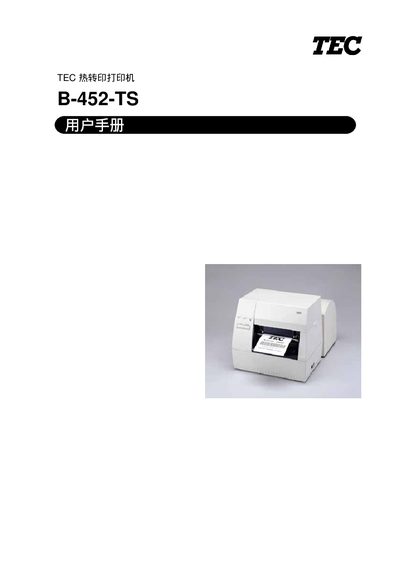

TEC B-452-TS thermal transfer printer user manual, introduces the safety, installation and maintenance of this machine
This manual covers safety information, general specifications, and detailed printer specifications for the Toshiba B-452-TS heat‑transfer printer. It explains required safety precautions, power requirements, environmental limits, and recommended maintenance procedures to ensure reliable operation.
The document also includes step‑by‑step installation instructions, paper and ribbon handling, optional accessories, and a troubleshooting guide. Appendices provide character tables and barcode samples for reference. This manual is written in Chinese.
| Supply voltage | 220‑240V, 50 Hz |
|---|---|
| Power consumption (max) | 74 W |
| Operating temperature range | 5 °C ~ 40 °C |
| Dimensions (W × H × D) | 270 mm × 245 mm × 200 mm |
| Weight | 4.7 kg |
| Print head resolution | 11.8 dots/mm (300 dpi) |
| Print speed (standard) | 50.8 mm/s (2 in/s) |
| Maximum print width | 105.7 mm |
The printer requires a supply voltage of 220‑240 V at 50 Hz and draws up to 0.41 A (maximum 74 W).
