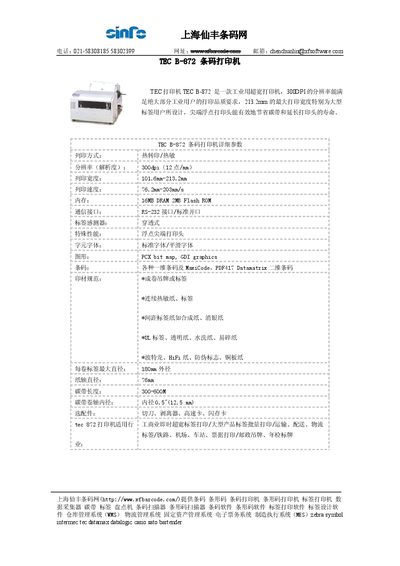

Shanghai Xianfeng Barcode Website provides barcode printers, barcode label printers, label printers, and other related products. The TEC B-872 is an industrial wide printer with a resolution of 300DPI and a maximum printing width of 213.2mm, suitable for large label users.
The TEC B-872 is an industrial ultra‑wide barcode printer designed for large‑format labels. It offers 300 dpi resolution and a maximum print width of 213.2 mm, meeting the quality needs of most industrial users. The printer uses a floating‑point tip print head that saves ribbon and extends head life.
Key specifications include thermal transfer/direct‑thermal printing, 300 dpi resolution, print speeds of 76.2‑203 mm/s, 16 MB DRAM and 2 HB flash memory, RS‑232 and parallel interfaces, and support for a wide range of media such as roll labels, continuous thermal paper, synthetic and security‑grade papers. Optional accessories like a cutter, peeler, high‑speed card, and flash card are available. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Resolution | 300 dpi (12 dots/inch) |
| Print width | 101.6 mm‑213.2 mm |
| Print speed | 76.2 mm‑203 mm/s |
| Memory | 16 MB DRAM, 2 HB Flash |
| Communication interface | RS‑232 and standard parallel port |
| Supported media | Roll labels, continuous thermal paper, synthetic, UL, transparent, wash‑able, fragile, anti‑counterfeit, copper‑plate paper |
| Maximum roll diameter | 180 mm |
| Ribbon length | 300‑600 m |
| Optional accessories | Cutter, peeler, high‑speed card, flash card |
It supports both thermal transfer and direct thermal printing.
The printer can print up to 213.2 mm wide labels.
The device provides an RS‑232 interface and a standard parallel port.
