TEC B-572 barcode printer is an industrial high-resolution and high-speed barcode printer. With a resolution of 300dpi, it can provide clearer printing effect than B-472. With a printing width of 128mm, it can print larger labels. With a printing speed of 203mm/s, it is suitable for production line and large-quantity printing. With a floating dot print head, it can save carbon tape and extend the service life of the print head.
The TEC B-572 barcode printer is designed for high‑volume production lines, offering a high‑definition 300 dpi output and a fast 203 mm/s printing speed. Its 128 mm (5 in) maximum print width handles larger labels and tags, while the rugged design and penetrating sensor ensure reliable operation.

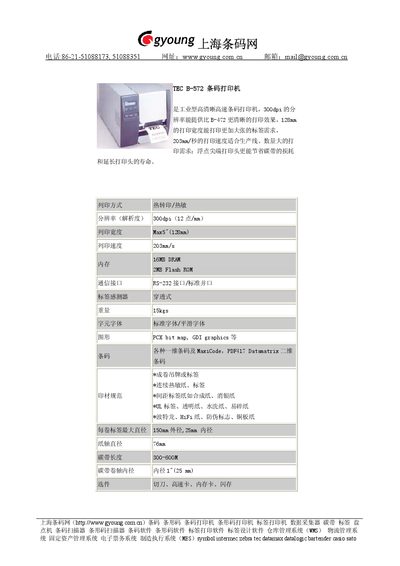

It supports both thermal transfer and direct thermal printing, provides RS‑232 and standard parallel interfaces, and can use a wide range of media including synthetic paper, foil, and high‑frequency (HiFi) paper. Optional accessories such as cutters, high‑speed cards, and memory modules expand its capabilities. This manual is written in Chinese.
| Print width | 128 mm (5 in) |
|---|---|
| Memory | 16 MB DRAM, 2 MB Flash |
| Communication interfaces | RS‑232, standard parallel |
| Label sensor | Penetrating sensor |
| Weight | 15 kg |
| Font support | Standard and smooth fonts |
| Maximum label roll diameter | 150 mm outer, 25 mm inner |
| Ribbon length | 300‑600 m |
The device includes RS‑232 and a standard parallel interface.
