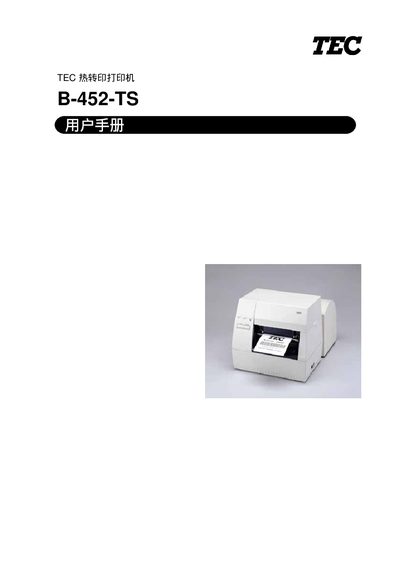

This manual provides safety guidelines, installation steps, and operating instructions for the Toshiba TEC B-452-TS heat‑transfer printer. It includes detailed specifications, supported barcode types, paper and ribbon options, and recommended maintenance procedures.
The document also contains troubleshooting tips, optional accessories information, and an appendix with ASCII and barcode sample data, helping users achieve reliable printing performance. This manual is written in Chinese.
| Supply voltage | 220‑240 V, 50 Hz |
|---|---|
| Power consumption (max) | 0.41 A, 74 W |
| Dimensions (without paper feed unit) | 270 mm W × 245 mm H × 200 mm D |
| Dimensions (with paper feed unit) | 410 mm depth |
| Weight | 4.7 kg (without paper and ribbon) |
| Print resolution | 11.8 dots/mm (300 dpi) |
| Maximum print width | 105.7 mm (4.16 in) |
| Print speed (serial barcodes) | 50.8 mm/s (2 in/s) |
