tec b-852 is an industrial wide-format barcode printer that supports 300dpi resolution and a maximum print width of 213.2mm. It is suitable for instant wide-format label printing in the industrial, commercial, large-scale product label batch printing, transportation, distribution, logistics labels, railway, airport, station, ticket printing, postal tags, annual inspection signs.
The TEC B-852 barcode printer is designed for industrial use, offering a 300 dpi (12 dot/mm) resolution and a maximum print width of 213.2 mm, suitable for large‑format labels and tags. It supports both thermal‑transfer and thermal‑sensitive printing methods and includes a floating‑point print head that conserves ribbon and extends head life.

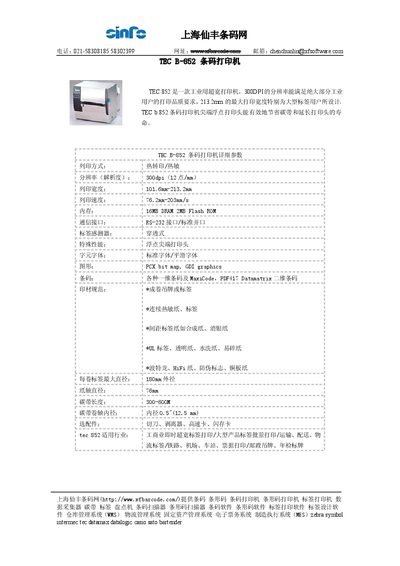

Key features include RS‑232 and standard parallel interfaces, 16 MB DRAM with 2 MB Flash ROM, standard and smooth fonts, PCX bitmap and GDI graphics support, and a wide range of 1‑D and 2‑D barcodes such as MaxiCode, PDF417 and DataMatrix. Optional accessories like cutters, peelers, high‑speed cards and flash cards are available. This manual is written in Chinese.
| Resolution | 300 dpi (12 dot/mm) |
|---|---|
| Print Width | 101.6 mm – 213.2 mm |
| Print Speed | 76.2 mm – 203 mm/s |
| Memory | 16 MB DRAM, 2 MB Flash ROM |
| Interface | RS‑232 and standard parallel |
| Print Head | Floating‑point tip |
| Fonts | Standard and smooth fonts |
| Graphics | PCX bitmap, GDI graphics |
| Maximum Label Diameter | 180 mm |
| Core Diameter | 0.5 in (12.5 mm) |
| Ribbon Length | 300 K – 600 K |
The printer can print up to 213.2 mm wide labels.
The device provides an RS‑232 serial port and a standard parallel interface.
It uses a floating‑point tip print head that helps save ribbon and extend head life.
