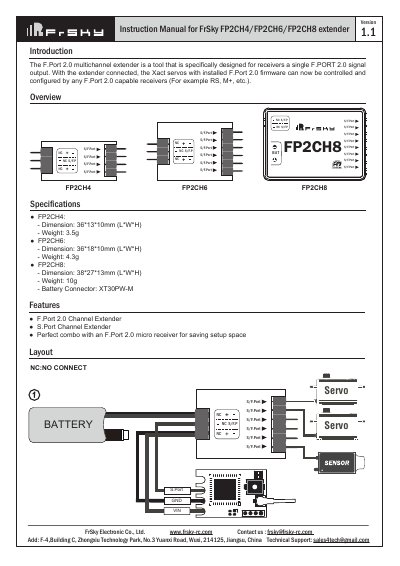

FrSky FP2CH4/FP2CH6/FP2CH8 Extender Instruction Manual

This manual introduces the functions and usage of FrSky FP2CH4/FP2CH6/FP2CH8 extender.

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 370 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 28368358E32D7DB083A3E9523CD7048C
PDF: FrSky FP2CH4/FP2CH6/FP2CH8 Extender Instruction Manual PDF

About this manual

The document provides an instruction manual for the FrSky F.Port 2.0 multichannel extender series (FP2CH4/FP2CH6/FP2CH8). This tool is designed to allow Xact servos with installed F.Port 2.0 firmware to be controlled and configured by any F.Port 2.0 capable receivers, such as RS or M+ models.

What's inside

Introduction
Specifications
Layout
Features
Warning

Specifications

FP2CH4 Dimension	361310mm (LWH)
FP2CH4 Weight	3.5g
FP2CH6 Dimension	361810mm (LWH)
FP2CH6 Weight	4.3g
FP2CH8 Dimension	382713mm (LWH)
FP2CH8 Weight	10g
FP2CH8 Battery Connector	XT30PW-M

Frequently asked questions

What is the purpose of the F.Port 2.0 multichannel extender?

It allows Xact servos with installed F.Port 2.0 firmware to be controlled and configured by any F.Port 2.0 capable receivers.

Which receivers are compatible with this extender?

The extender works with F.Port 2.0 capable receivers such as RS, M+, etc.
