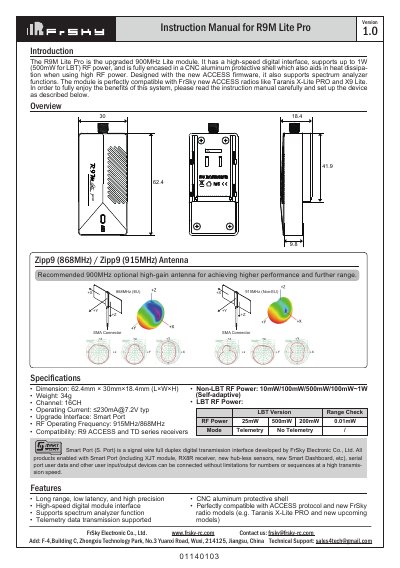

The R9M Lite Pro is the upgraded 900MHz Lite module. It has a high-speed digital interface, supports up to 1W (500mW for LBT) RF power, and is fully encased in a CNC aluminum protective shell which also aids in heat dissipa- tion when using high RF power. Designed with the new ACCESS firmware, it also supports spectrum analyzer functions. The module is perfectly compatible with FrSky new ACCESS radios like Taranis X-Lite PRO and X9 Lite. In order to fully enjoy the benefits of this system, please read the instruction manual carefully and set up the device as described below.
The FrSky R9M Lite Pro is an upgraded 900MHz Lite module featuring a high-speed digital interface and support for up to 1W RF power. Encased in a CNC aluminum protective shell for heat dissipation, it supports spectrum analyzer functions and is compatible with FrSky ACCESS radios like the Taranis X-Lite PRO.
The document details how to perform pre-flight range checks to ensure signal integrity, configure three failsafe modes (No Pulse, Hold, Custom), and register/bind the module using the Smart Match feature. It also includes a reference table for LED states indicating registration and binding status.
| RF Power (Non-LBT) | 10mW/100mW/500mW/100mW~1W |
|---|---|
| RF Power (LBT) | 25mW / 500mW / 200mW |
| Operating Frequency | 915MHz/868MHz |
| Dimensions | 62.4mm × 30mm×18.4mm |
| Weight | 34g |
| Operating Current | ≤[email protected] typ |
The three failsafe modes are No Pulse, Hold, and Custom.
A flashing RED LED on the receiver indicates that it is in [Bind] status.
