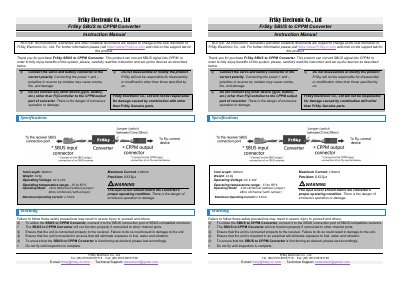

This document is the instruction manual of FrSky SBUS to CPPM Converter. It details the features and usage of the product.
This document is the instruction manual for the FrSky SBUS to CPPM Converter. It explains that the product converts SBUS signals into CPPM format and must be connected to the SBUS connection port of compatible receivers. Users are advised to carefully read the instructions and perform inspections before flying.
| Total Length | 360mm |
|---|---|
| Weight | 14.9g |
| Operating Voltage | DC 4-10V |
| Operating temperature range | -10 to 80 ℃ |
| Operating Mode (without jumper) | 21ms 8Channel |
| Operating Mode (with Jumper) | 28ms 12Channel |
| Maximum Operating Current | ≤ 15mA |
| Maximum Current | ≤700mA |
| Precision | 0.615μs |
This product can convert SBUS signal into CPPM.
Connect it to the SBUS connection port of SBUS compatible receivers.
The SBUS to CPPM Converter will not function properly.
