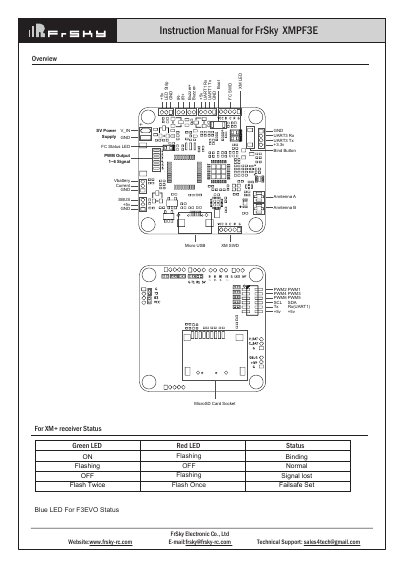

The document introduces the features and specifications of FrSky XMPF3E, which is a flight controller with F3EVO and XM+ receiver modules.
The FrSky XMPF3E is a compact flight control unit that integrates the F3EVO flight controller and the XM+ receiver into a single device. It features a built-in STM32F303 CPU, MPU9250 sensor for accelerometer, gyro, and compass data, and a BMP280 barometer. The unit supports 16 channels via SBUS to UART2 Rx of the F3EVO component.
| Model name | XMPF3E |
|---|---|
| Dimension | 36x36x6mm (L x W x H) with 30.5mm mounting holes |
| CPU | STM32F303 CPU (72Mhz inc FPU) |
| Weight | 7g |
| Channels | 16CH (8CH is RSSI) |
| Operating Voltage Range | 4.0~10V |
The factory firmware for the F3EVO is betaflight_3.0.0_SPRACINGF3EVO.
No, the XM+ receiver is a one-way receiver that does not support telemetry.
