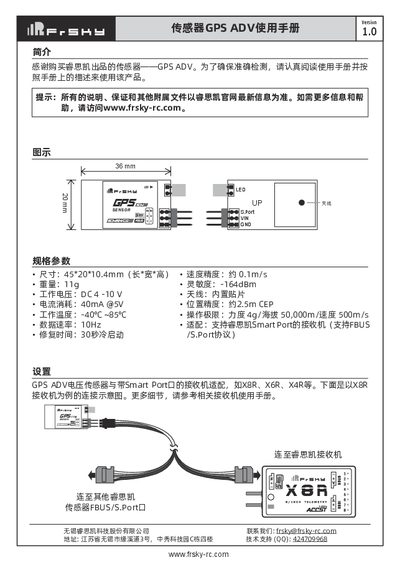

The FrSky GPS ADV sensor user manual provides specifications, wiring diagrams, setup steps, LED status explanations and ID configuration instructions.
This manual introduces the FrSky GPS ADV sensor, a compact GPS module designed for use with FrSky Smart Port receivers. It includes physical dimensions, electrical characteristics, performance specifications, and mounting guidelines.
The document details connection diagrams for Smart Port receivers such as the X8R, explains how to configure the sensor ID via the Free Link app, and describes LED indicators for S.Port and FBUS operation. Safety warnings and compatibility notes are also provided. This manual is written in Chinese.
| Dimensions (L×W×H) | 45 × 20 × 10.4 mm |
|---|---|
| Operating voltage | DC 4‑10 V |
| Current consumption | 40 mA @ 5 V |
| Operating temperature | -40 °C ~ 85 °C |
| Data rate | 10 Hz |
| Fix time (cold start) | 30 s |
| Speed accuracy | ≈ 0.1 m/s |
| Sensitivity | -164 dBm |
| Antenna type | Built‑in patch |
| Position accuracy | ≈ 2.5 m CEP |
| Operational limits | Acceleration 4 g / Altitude 50 000 m / Speed 500 m/s |
| Compatibility | FrSky Smart Port receivers (FBUS / S.Port) |
Use the Free Link application on Windows, Android, or iOS to modify the sensor's unique physical ID.
A slow‑flashing LED indicates no S.Port connection, while a fast‑flashing LED indicates that S.Port is active.
The sensor operates on a DC supply between 4 V and 10 V.
Mount the GPS sensor on the model so that its antenna faces upward toward the sky.
