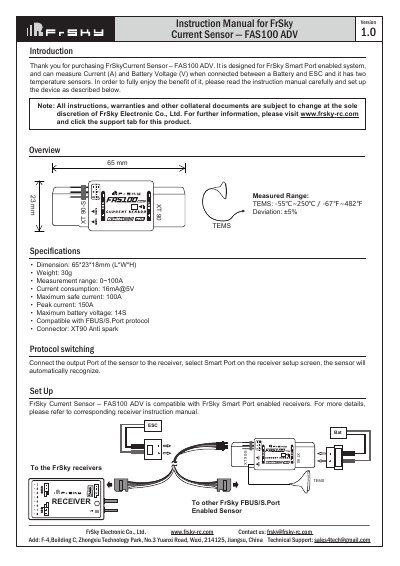

FrSkyCurrent Sensor – FAS100 ADV is a product that can be connected between a battery and ESC to measure current and battery voltage. It also has two temperature sensors.
The FrSky FAS100 ADV is a current and battery voltage sensor designed for FrSky Smart Port enabled systems. It measures current from 0 to 100A and battery voltage up to 14S, featuring two temperature sensors with a range of -55°C to 250°C. The device connects between the battery and ESC using an XT90 connector.
| Measurement range (Current) | 0~100A |
|---|---|
| Maximum battery voltage | 14S |
| Temperature measurement range | -55℃~250℃ |
| Connector type | XT90 Anti spark |
| Weight | 30g |
The default physical ID for this sensor is 02.
Connect the output Port of the sensor to the receiver and select Smart Port on the receiver setup screen.
