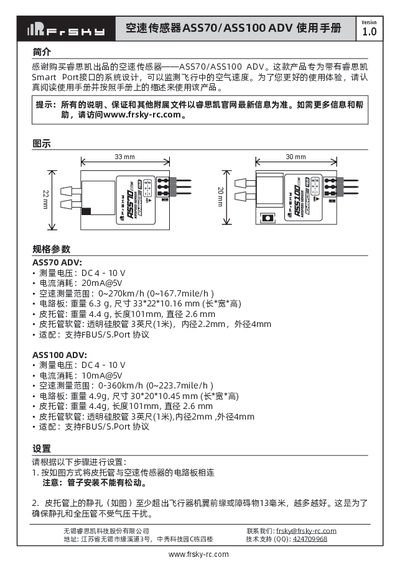

The Frsky ASS70/ASS100 ADV air speed sensor user manual provides installation steps, configuration, specifications, and usage guidelines.
The ASS70 and ASS100 ADV air speed sensors are designed for systems with Frsky Smart Port interfaces and measure airflow speed during flight. The manual introduces the product, its purpose, and the required safety precautions.
It covers connection of the pitot tube, recommended placement on the aircraft, wiring to the Smart Port, ID configuration via Free Link ETHOS, LED status indicators, and detailed electrical and mechanical specifications for both models. This manual is written in Chinese.
| Measurement voltage (both models) | DC 4 - 10 V |
|---|---|
| Current consumption (ASS70) | 20mA@5V |
| Current consumption (ASS100) | 10mA@5V |
| Air speed range (ASS70) | 0~270 km/h (0~167.7 mile/h) |
| Air speed range (ASS100) | 0~360 km/h (0~223.7 mile/h) |
| Board dimensions (ASS70) | 33*22*10.16 mm |
| Board dimensions (ASS100) | 30*20*10.45 mm |
| Pitot tube length (both models) | 101 mm |
| Supported protocol (both models) | FBUS/S.Port |
You can change the ID using Free Link ETHOS on Windows, Android, or iOS.
The static hole of the pitot tube should extend at least 13 mm beyond the wing leading edge and avoid water, oil, or vibration‑prone areas.
