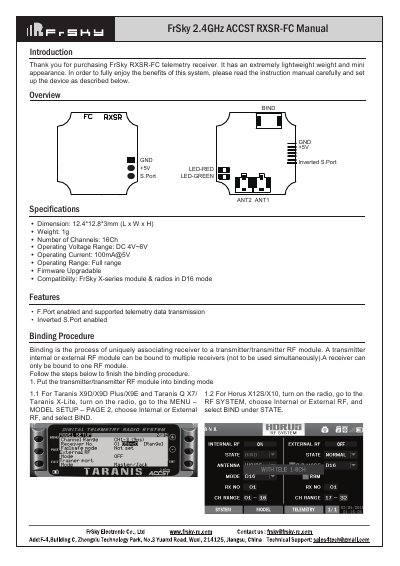

FrSky RXSR-FC telemetry receiver manual. This manual introduces FrSky RXSR-FC telemetry receiver's features, specifications, usage methods, binding methods, etc.
The FrSky RXSR-FC is a lightweight (1g) 2.4GHz ACCST telemetry receiver with 16 channels and dimensions of 12.4*12.8*3mm. It supports an operating voltage range of DC 4V to 6V and features firmware upgradability for compatibility with FrSky X-series modules.
| Weight | 1g |
|---|---|
| Number of Channels | 16Ch |
| Operating Voltage Range | DC 4V~6V |
| Operating Current | 100mA@5V |
| Dimensions | 12.4*12.8*3mm (L x W x H) |
Put the transmitter into binding mode, connect battery to the receiver while holding the Bind button until the RED LED flashes, then reboot the receiver.
Place the model at least 60cm above non-metal contaminated ground with the antenna vertical, then access the Range menu in the radio's Model Setup or RF System.
Yes, for receivers supporting D16 RF mode, you can set failsafe by short pressing the Bind button while moving channel positions to a preset value.
