This document introduces the features of the ESC 5000 electronic speed controller, including power, frequency, current rating, rated reverse voltage, case size, weight and other information.

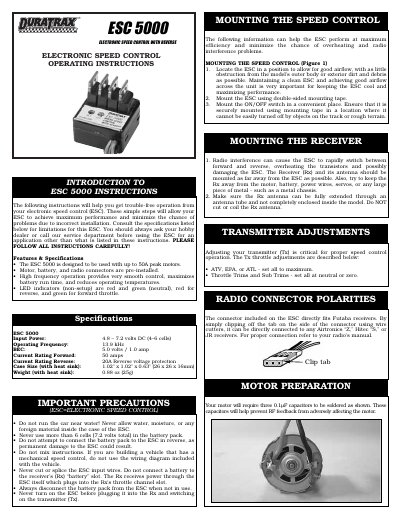

This document provides operating instructions for the Duratrax ESC 5000 electronic speed control. It details the proper mounting of the speed control and receiver to ensure good airflow and minimize radio interference. The guide also explains how to adjust the transmitter and program the ESC for neutral, full throttle, and full reverse positions.
| Input Power | 4.8 - 7.2 volts DC (4-6 cells) |
|---|---|
| Operating Frequency | 13.9 kHz |
| BEC Output | 5.0 volts / 1.0 amp |
| Current Rating Forward | 50 amps |
| Current Rating Reverse | 20A |
| Case Size | 1.02" x 1.02" x 0.63" (26 x 26 x 16mm) |
| Weight | 0.88 oz (25g) |
Never use more than 6 cells (7.2 volts total) in the battery pack.
Leave the throttle trigger in the neutral position and press the setup button once until the green LED flashes.
Check if the motor is wired backwards or if a reverse rotation motor is being used, and adjust the Tx throttle reversing switch if necessary.
