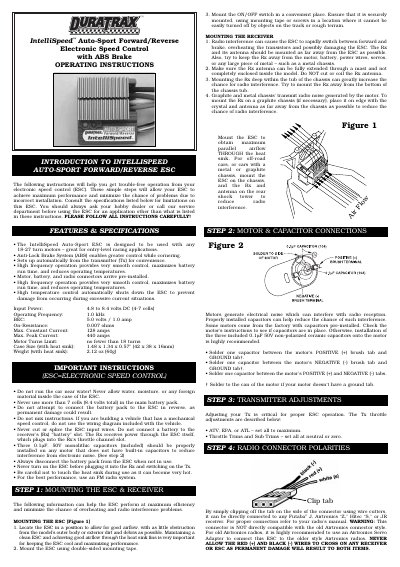

DuraTrax IntelliSpeed AutoSport Forward/Reverse ESC User Manual

This document provides instructions on how to properly install and use the IntelliSpeed Auto-Sport Electronic Speed Control (ESC) for maximum performance and to minimize issues. The ESC is designed for use with 18-27 turn motors, features an Anti-Lock Brake System (ABS), and offers automatic setup and high-frequency operation for smooth control and extended battery run time.

Brand: Duratrax
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 137 KB
Published: 08 August, 2012
Updated: 28 September, 2023
MD5 checksum: 8DFEEA024F9DCA10F6DB2E1FEB0A03A3
PDF: DuraTrax IntelliSpeed AutoSport Forward/Reverse ESC User Manual PDF

About this manual

This manual provides instructions for installing, setting up, and operating the DuraTrax IntelliSpeed Auto-Sport Forward/Reverse Electronic Speed Control (ESC) equipped with an Anti-Lock Brake System (ABS). It covers mounting procedures, motor connections, transmitter adjustments, and automatic speed control setup.

What's inside

Introduction
Mounting the ESC & Receiver
Motor & Capacitor Connections
Transmitter Adjustments
Automatic Speed Control Set-Up
Troubleshooting Guide

Frequently asked questions

What is the IntelliSpeed AutoSport Forward/Reverse ESC designed for?

It is designed to be used with any 18-27 turn motors for entry-level racing applications.

What is the maximum number of cells allowed in the main battery pack?

You must never use more than 7 cells, which equals 8.4 volts total.

At what temperature does the ESC automatically shut down to prevent damage?

The unit will automatically shut down if the operating temperature exceeds 100° Celsius (212°F).
