This product is an electronic speed controller with ABS brake and reverse function, which is suitable for 8-27 turn motors and is ideal for intermediate to professional racing applications.

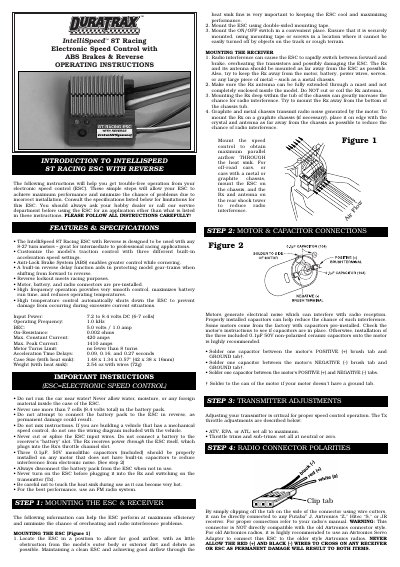

This manual provides operating instructions for the Duratrax IntelliSpeed 8T Racing ESC, designed for use with 8-27 turn motors in intermediate to professional racing applications. Key features include an Anti-Lock Brake System (ABS), customizable acceleration speed settings, and a built-in reverse delay function to protect gear trains.
| Input Power | 7.2 to 8.4 volts DC |
|---|---|
| Operating Frequency | 1.0 kHz |
| BEC Output | 5.0 volts / 1.0 amp |
| On-Resistance | 0.002 ohms |
| Max. Constant Current | 420 amps |
| Max. Peak Current | 1410 amps |
| Motor Turns Limit | no fewer than 8 turns |
Never use more than 7 cells (8.4 volts total) in the battery pack.
While the LEDs are oscillating, move the throttle trigger to either full throttle or full reverse, then return to neutral.
The unit will automatically shut down to protect components and prevent permanent damage.
