This document introduces the features of nickel cadmium chargers, including pulse width modulated charging current, automatic cut-off circuit, automatic identification of battery types, adjustable fast charging current, 100mA trickle charging, 1 amp fixed discharge rate, cycle functions and four multi-function, high intensity LED lights and sound prompts.

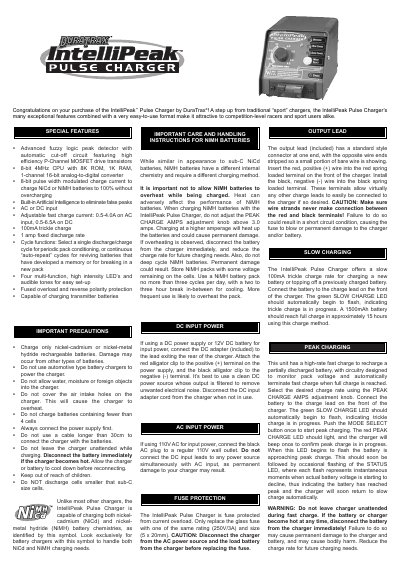

The DuraTrax IntelliPeak is a pulse charger designed for competition-level racers and sport users. It features advanced fuzzy logic peak detection with an automatic cut-off circuit to charge NiCd or NiMH batteries efficiently without overcharging. The device includes built-in artificial intelligence to eliminate false peaks and offers both AC and DC input options.
| Input Voltage (AC) | 110V AC |
|---|---|
| Input Voltage (DC) | 12V DC battery or DC adapter |
| AC Charge Current Range | 0.5-4.0A |
| Trickle Charge Rate | 100mA |
| Discharge Rate | 1 amp fixed |
| NiMH Fast Charge Limit | 0.5-3.0A |
| Discharge Cutoff Voltage | 2.60V fixed |
It is capable of charging both nickel-cadmium (NiCd) and nickel-metal hydride (NiMH) battery chemistries.
Yes, it can charge 9.6V transmitter batteries using AC input or DC power between 12V and 15V.
Do not adjust the PEAK CHARGE AMPS adjustment knob above 3.0 amps when charging NiMH batteries.
A 1500mAh battery should reach full charge in approximately 15 hours using the slow trickle charge method.
