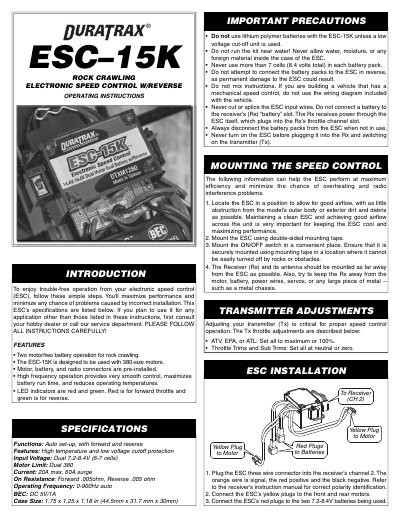

This instruction manual introduces the function and use of the ESC-15K rock crawling electronic speed control. This control is suitable for two-motor, two-battery rock crawling applications. This control adopts high-frequency operation, smooth control, longer battery life and lower working temperature.
This document provides operating instructions for the DuraTrax ESC-15K, an electronic speed control designed specifically for rock crawling with 380-size motors. It details the features, including dual motor operation and high-frequency control, along with important precautions regarding battery usage and environmental conditions.
| Motor Limit | Dual 380 |
|---|---|
| Input Voltage | Dual 7.2-8.4V |
| Max Current | 20A |
| Operating Frequency | 0-900Hz auto |
| BEC Output | DC 5V/1A |
| Case Size | 1.75 x 1.25 x 1.18 in |
The ESC-15K is designed to be used with 380-size motors.
The maximum input voltage is 8.4V per battery pack (Dual 7.2-8.4V).
DuraTrax warrants the product to be free from defects for 120 days from the date of purchase.
