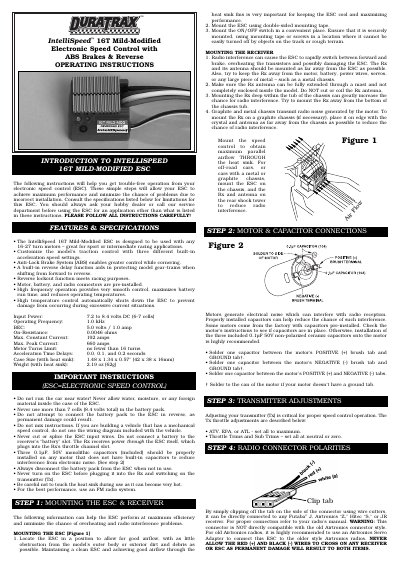

This document is an instruction manual for IntelliSpeed 16T Mild-Modified ESC electronic speed control, which introduces the product's features and usage methods.
This manual provides operating instructions for the Duratrax IntelliSpeed 16T Mild-Modified Electronic Speed Control (ESC) with ABS brakes and reverse. It details features such as traction control settings, anti-lock brake systems, and reverse delay functions designed for 16-27 turn motors. The guide emphasizes proper installation to minimize overheating and radio interference.
| Input Power | 7.2 to 8.4 volts DC |
|---|---|
| Operating Frequency | 1.0 kHz |
| BEC Output | 5.0 volts / 1.0 amp |
| On-Resistance | 0.0046 ohms |
| Max. Constant Current | 192 amps |
| Max. Peak Current | 660 amps |
| Motor Turns Limit | no fewer than 16 turns |
Never use more than 7 cells (8.4 volts total) in the battery pack.
Move the throttle trigger to either full throttle or full reverse while the LEDs are oscillating, then return to neutral.
The unit will automatically shut down to protect components and prevent permanent damage.
No, do not mix instructions; if building a vehicle with a mechanical speed control, do not use the wiring diagram included with the vehicle.
