This document introduces the IntelliSpeed 12T Modified ESC, which is designed for use with any 12-27 turn motors, and is great for intermediate or competition racing applications. It features three different built-in acceleration speed settings, a customizable traction control system, and an Anti-Lock Brake System (ABS).

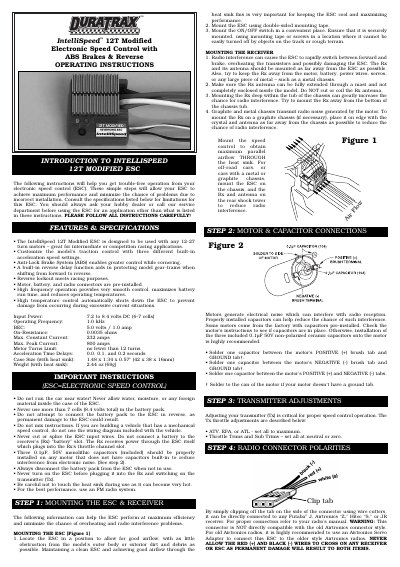

This document provides operating instructions for the Duratrax IntelliSpeed 12T Modified Electronic Speed Control (ESC). The device is designed for use with 12-27 turn motors in intermediate or competition racing applications. Key features include an Anti-Lock Brake System (ABS), a built-in reverse delay function, and high-frequency operation to maximize battery run time.
| Input Power | 7.2 to 8.4 volts DC (6-7 cells) |
|---|---|
| Operating Frequency | 1.0 kHz |
| BEC Output | 5.0 volts / 1.0 amp |
| On-Resistance | 0.0035 ohms |
| Max Constant Current | 232 amps |
| Max Peak Current | 800 amps |
Never use more than 7 cells (8.4 volts total) in the battery pack.
Move the throttle trigger to either full throttle or full reverse while the LEDs are oscillating, then return to neutral.
The unit will automatically shut down, as indicated by flashing red and green LEDs.
