The document provides instructions on how to use and the specifications of the electronic speed control (ESC). The ESC is designed for use with 20-27 turn motors and features high frequency operation and high temperature control.

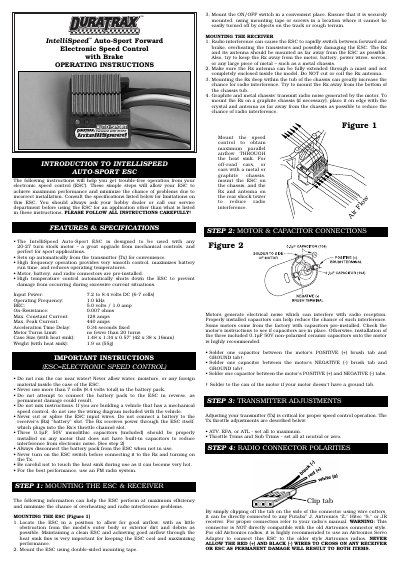

This manual provides instructions for the proper installation and operation of the Duratrax IntelliSpeed Auto-Sport Electronic Speed Control (ESC). It covers mounting the ESC and receiver, connecting the motor and capacitors, adjusting the transmitter, and setting up the speed control neutral, full throttle, and brake points. The document also includes troubleshooting guides for common issues like overheating or motor failure.
| Input Power | 7.2 to 8.4 volts DC (6-7 cells) |
|---|---|
| Operating Frequency | 1.0 kHz |
| BEC Output | 5.0 volts / 1.0 amp |
| On-Resistance | 0.007 ohms |
| Max. Constant Current | 128 amps |
| Max. Peak Current | 440 amps |
| Acceleration Time Delay | 0.34 seconds fixed |
| Motor Turns Limit | no fewer than 20 turns |
| Case Size | 1.48 x 1.34 x 0.57" (42 x 38 x 16mm) |
| Weight | 1.9 oz (55g) |
The IntelliSpeed Auto-Sport ESC is designed to be used with any 20-27 turn stock motor.
Turn on the ESC's switch; the position of the throttle trigger at this time will become the neutral point, indicated by the green LED.
Check if the motor leads are reversed and change them to opposite positions, or ensure a forward rotation motor is being used.
Duratrax warrants the product to be free from defects in materials and workmanship for a period of 120 days from the date of purchase.
