This document describes how to set up the motor and the speed controller

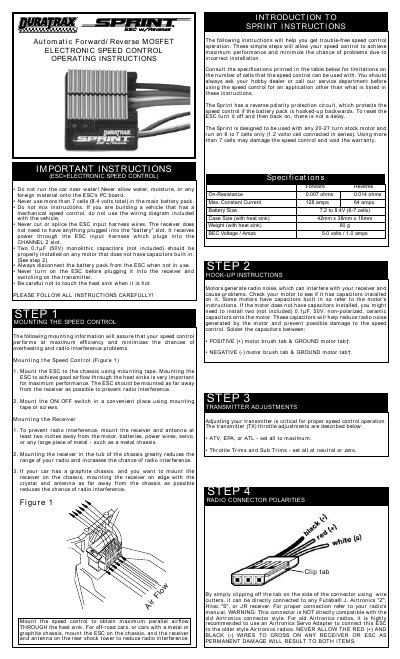

This manual provides operating instructions for the DuraTrax Sprint Electronic Speed Control (ESC). It covers mounting procedures to ensure maximum efficiency and minimize radio interference, as well as critical transmitter adjustments required for proper speed control operation. The document details how to handle motor-generated radio noise by installing capacitors and configuring the receiver.
| Max Constant Current (Forward) | 128 amps |
|---|---|
| Max Constant Current (Reverse) | 64 amps |
| Battery Size | 7.2 to 8.4V (6-7 cells) |
| Case Size | 42mm x 38mm x 16mm |
| Weight | 60 g |
| BEC Voltage / Amps | 5.0 volts / 1.0 amps |
The speed control is designed to run on 6 to 7 cells only (8.4 volts total). Using more than 7 cells may damage the speed control and void the warranty.
You should install two 0.1µF, 50V, non-polarized ceramic capacitors between the positive motor brush tab and ground, and the negative motor brush tab and ground.
