This is the instruction manual of the Philips charger. The features of the product include negative voltage detection, high-efficiency P-Channel MOSFET drive transistors, 11-15V DC input, 4-8 battery packs, 0.5-6.5A adjustable fast charging current, 100mA trickle charging, 10 and 2A fixed discharge rates, selectable cycle functions, four multi-function high-intensity LEDs and audible tones, dual built-in miniature fans to keep the charger cool, reverse polarity and overload protection, and the ability to charge transmitter batteries.

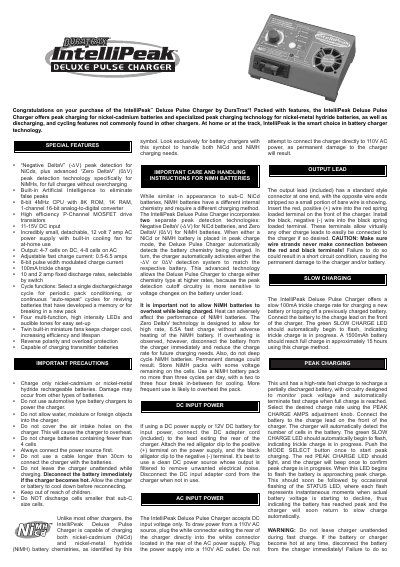

The DuraTrax IntelliPeak Deluxe Pulse Charger is designed for charging nickel-cadmium (NiCd) and nickel-metal hydride (NiMH) batteries. It features advanced peak detection technologies, including Negative DeltaV for NiCd and Zero DeltaV for NiMH, to ensure full charges without overcharging. The device includes an 8-bit 4MHz CPU and offers adjustable fast charge currents ranging from 0.5 to 6.5 amps.
| Input Voltage (DC) | 11-15 DC |
|---|---|
| Input Voltage (AC) | 110V AC |
| Fast Charge Current | 0.5-6.5 amps |
| Trickle Charge Rate | 100mA |
| Discharge Rates | 10 and 2 amp |
| Max Cells (DC) | 7 cells |
| Discharge Cutoff Voltage | 2.60V |
It is capable of charging nickel-cadmium (NiCd) and nickel-metal hydride (NiMH) rechargeable batteries.
The charger automatically detects the battery chemistry and activates either the Negative DeltaV system for NiCd or Zero DeltaV for NiMH.
No, you should not charge batteries containing fewer than 4 cells.
Do not charge 4 or 5 cell batteries at a rate greater than 4.5A to avoid excessive heating.
