The IntelliSpeed™ 8T Pro Racing Forward Only Electronic Speed Control is an electronic speed controller designed for racing motors with as few as 8 turns. It features Track Set-up Mode, Auto-Brake function, variable frequency settings, and high output current rating. It is suitable for intermediate to professional racing applications.

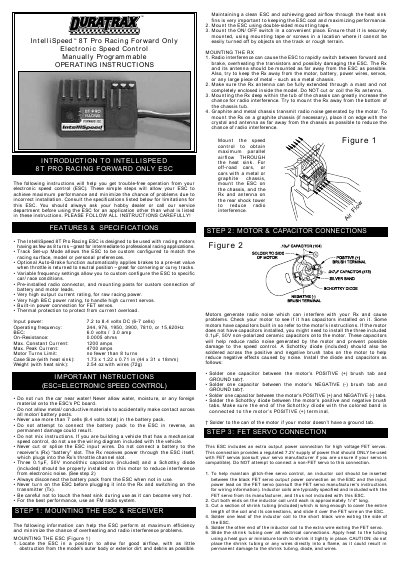

This manual provides operating instructions for the IntelliSpeed 8T Pro Racing Forward Only Electronic Speed Control (ESC). It is designed for racing motors with as few as 8 turns and includes features such as track set-up mode, optional auto-brake, and variable frequency settings. The document covers mounting the ESC and receiver, connecting the motor and capacitors, and wiring FET servos to ensure maximum performance and safety.
| Input power | 7.2 to 8.4 volts DC (6-7 cells) |
|---|---|
| Operating frequency | 244, 976, 1950, 3900, 7810, or 15,620Hz |
| BEC output | 6.0 volts / 3.0 amp |
| On-Resistance | 0.0005 ohms |
| Max. Constant Current | 1200 amps |
| Max. Peak Current | 4700 amps |
| Motor Turns Limit | no fewer than 8 turns |
| Case Size | 1.73 x 1.22 x 0.71 in (44 x 31 x 18mm) |
The ESC is designed for racing motors having as few as 8 turns.
You should never use more than 7 cells (8.4 volts total) in the battery pack.
For the best performance, use an FM radio system.
