This document introduces the features of Nickel battery charger, including high-efficiency P-channel MOSFET drive transistors, 8-bit 4MHz CPU, 8K ROM, 1K RAM, 1-channel 16-bit analog-to-digital converter and so on.

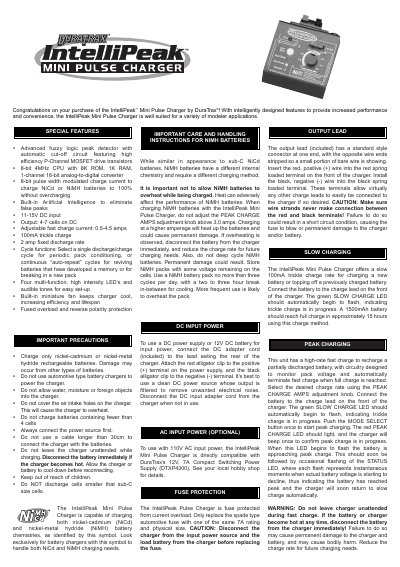

The DuraTrax IntelliPeak Mini Pulse Charger is designed to charge nickel-cadmium (NiCd) and nickel-metal hydride (NiMH) rechargeable batteries. It features an advanced fuzzy logic peak detector with automatic cut-off circuitry, an 8-bit CPU, and built-in artificial intelligence to eliminate false peaks. The device includes adjustable fast charge current ranging from 0.5 to 4.5 amps for NiCd and up to 3.0 amps for NiMH batteries.
| Input Voltage | 11-15V DC |
|---|---|
| Output Cells | 4-7 cells on DC |
| NiCd Fast Charge Current | 0.5-4.5A |
| NiMH Fast Charge Current | 0.5-3.0A |
| Trickle Charge Rate | 100mA |
| Discharge Rate | 2 Amp fixed |
| Discharge Cutoff Voltage | 2.60V fixed |
| Battery Types Supported | NiCd & NiMH |
The IntelliPeak Mini Pulse Charger is capable of charging both nickel-cadmium (NiCd) and nickel-metal hydride (NiMH) battery chemistries.
You should not adjust the PEAK CHARGE AMPS adjustment knob above 3.0 amps when charging NiMH batteries to avoid overheating.
Yes, it can charge 9.6V transmitter batteries using DC input power greater than 12V but less than 15V, though discharging them is not recommended.
