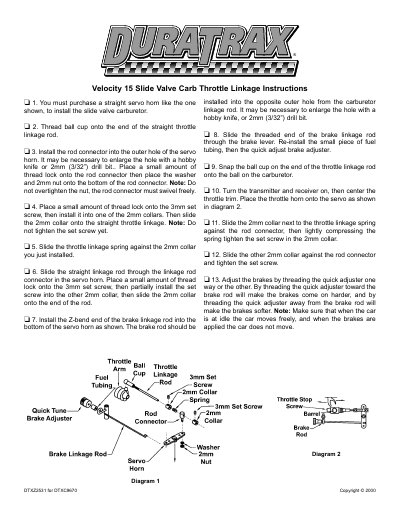

Duratrax Velocity 15 Slide Valve Carb Throttle Linkage Instructions

About this manual

This document provides step-by-step instructions for installing the slide valve carburetor throttle linkage on the Duratrax Velocity 15. It details how to attach the straight servo horn, thread the ball cup onto the linkage rod, and secure the rod connector into the servo horn using a washer and nut. The guide also covers installing the 2mm collars and set screws to hold the linkage spring in place.

What's inside

• Straight Servo Horn
• Throttle Linkage Rod
• Rod Connector Installation
• 2mm Collars and Set Screws
• Brake Linkage Rod
• Brake Adjuster
• Throttle Trim Centering
• Brake Adjustment

Frequently asked questions

What specific part must be purchased to install the slide valve carburetor?

You must purchase a straight servo horn to install the slide valve carburetor.

What tool is recommended to enlarge the servo horn hole if necessary?

It may be necessary to enlarge the hole with a hobby knife or a 2mm (3/32") drill bit.

How do you adjust the brake firmness using the quick adjuster?

Threading the quick adjuster toward the brake rod makes the brakes come on harder, while threading it away makes them softer.
