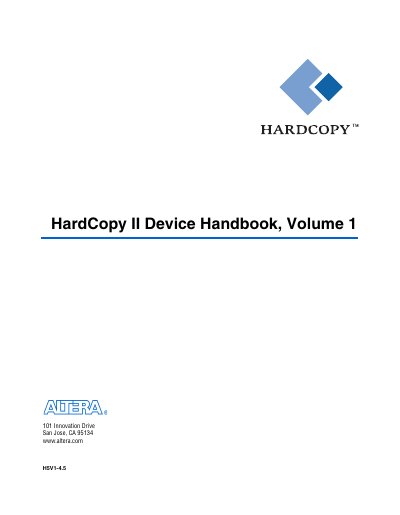

Altera HardCopy II Device Handbook Volume 1 User Guide

About this manual

This handbook serves as a complete reference for the HardCopy II device family. It details the functional description, architecture, and features of these programmable logic devices, including HCells, embedded memory, PLLs, clock networks, and I/O structures. The document also covers boundary-scan support (IEEE Std 1149.1) and provides extensive DC and switching specifications.

What's inside

• Introduction to HardCopy II Devices
• Description, Architecture, and Features
• Boundary-Scan Support
• DC and Switching Specifications
• Quartus II Support for HardCopy II Devices
• Script-Based Design for HardCopy II Devices
• Timing Constraints for HardCopy II Devices
• Migrating Stratix II Device Resources

Frequently asked questions

Which software tool supports the design of HardCopy II devices?

The Quartus II software supports HardCopy II devices and includes features for planning and compiling designs.

What specific timing analysis tools are used for HardCopy II designs?

Designers use the TimeQuest Timing Analyzer or the Classic Timing Analyzer to constrain and check timing.
