This document describes the features and characteristics of the CRS08 TOSHIBA Schottky Barrier Rectifier, which is suitable for switching mode power supply, portable equipment, and battery applications. It has a low forward voltage, moderate average forward current, and repetitive peak reverse voltage.

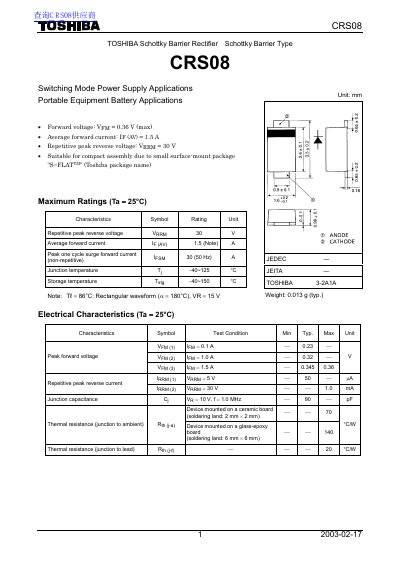

This document is a datasheet for the Toshiba CRS08 Schottky Barrier Rectifier. It details the device's electrical characteristics, such as a maximum repetitive peak reverse voltage of 30V and an average forward current of 1.5A. The device is designed for switching mode power supply and portable equipment battery applications.
| Repetitive peak reverse voltage | 30 V |
|---|---|
| Average forward current | 1.5 A |
| Peak one cycle surge forward current | 30 A |
| Junction temperature | -40~125 °C |
| Storage temperature | -40~150 °C |
| Forward voltage (typical) | 0.36 V |
Schottky barrier diodes have large reverse-current-leakage characteristics, and improper operating temperature or voltage may cause thermal runaway.
The typical forward voltage is 0.36 V when the forward current is 1.5A.
