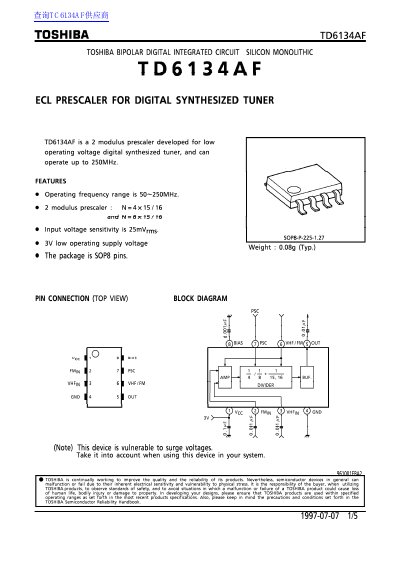

The TOSHIBA TD6134AF is a 2 modulus prescaler developed for low operating voltage digital synthesized tuners. It is designed to operate with a supply voltage as low as 3V and can handle frequencies up to 250MHz. The device supports two dividing modes: N=4x15/16 and N=8x15/16, controlled by an input terminal.
| Operating frequency range | 50~250MHz |
|---|---|
| Supply voltage | 1.8~5.5V |
| Operating temperature | -10~60°C |
| Storage temperature | -55~150°C |
| Package type | SOP8 |
The device operates in two modes: N=4x15/16 and N=8x15/16.
The input voltage sensitivity is 25mVrms.
