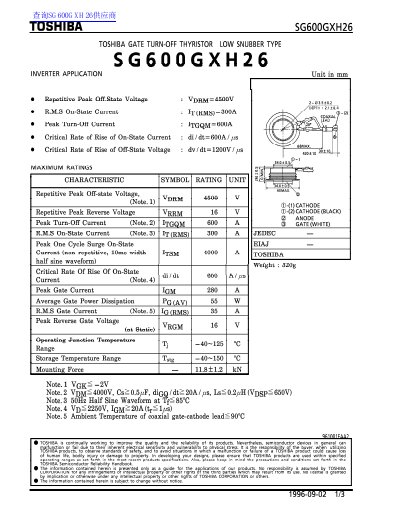

This document is a datasheet for the TOSHIBA SG600GXH26, a low snubber type gate turn-off thyristor (GTO) intended for inverter applications. The device features a repetitive peak off-state voltage of 4500V and an RMS on-state current of 300A.
| Repetitive Peak Off-State Voltage | 4500 V |
|---|---|
| RMS On-State Current | 300 A |
| Peak Turn-Off Current | 600 A |
| Critical Rate of Rise of On-State Current | 600A/ us |
| Critical Rate of Rise of Off-State Voltage | 1200V/ us |
| Operating Junction Temperature Range | -40~125 °C |
| Storage Temperature Range | -40~150 °C |
The device is designed for inverter applications.
The peak gate current rating is 280 A.
The maximum average gate power dissipation is 55 W.
