CRS09 is a Schottky diode produced by Toshiba, with an average forward current rating of 1.5A and a reverse peak voltage rating of 30V.

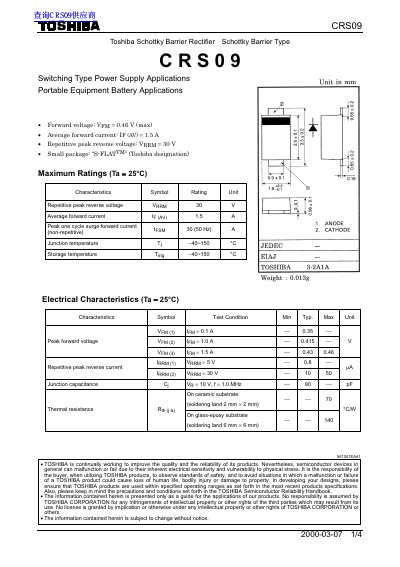

This document is a datasheet for the Toshiba CRS09 Schottky Barrier Rectifier. It specifies that the device is designed for switching type power supply and portable equipment battery applications. The component features a small "S-FLATT" package and operates with a maximum repetitive peak reverse voltage of 30V and an average forward current of 1.5A.
| Repetitive peak reverse voltage | 30 V |
|---|---|
| Average forward current | 1.5 A |
| Junction temperature | -40~150 °C |
| Storage temperature | -40~150 °C |
| Peak forward voltage (at If=1.5A) | 0.46 V |
The CRS09 is intended for switching type power supply applications and portable equipment battery applications.
The maximum junction temperature (Tj) is 150 °C.
