This document provides information about the 74VCX08 supplier, including the features and characteristics of the product.

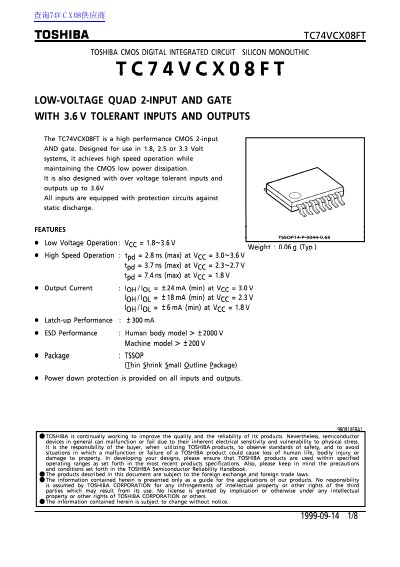

The TC74VCX08FT is a high-performance CMOS quad 2-input AND gate designed for use in 1.8, 2.5, or 3.3 Volt systems. It achieves high-speed operation while maintaining low power dissipation and features over-voltage tolerant inputs and outputs up to 3.6V. All inputs are equipped with protection circuits against static discharge, and power-down protection is provided on all inputs and outputs. The device is available in a TSSOP 14-pin package.
| Supply Voltage | 1.8~3.6V |
|---|---|
| Output Current (min) | ±24mA |
| Latch-up Performance | ±300mA |
| Package Type | TSSOP 14-Pin |
The device is designed for use in 1.8, 2.5, or 3.3 Volt systems with a recommended supply voltage range of 1.8V to 3.6V.
Yes, it is designed with over-voltage tolerant inputs and outputs up to 3.6V.
