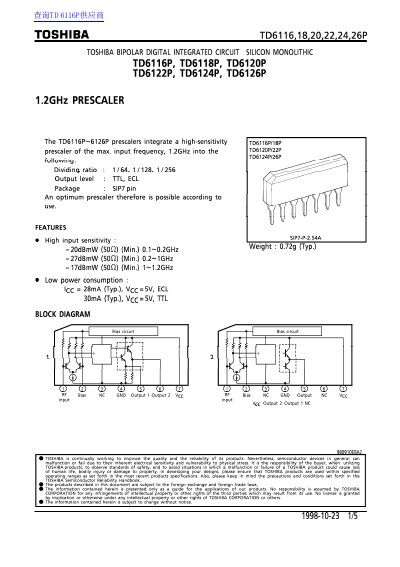

This datasheet describes the Toshiba TD6116P through TD6126P series of bipolar digital integrated circuit silicon monolithic prescalers. These devices integrate a high-sensitivity prescaler with a maximum input frequency of 1.2GHz into a single SIP7 pin package. The series offers dividing ratios of 1/64, 1/128, and 1/256, with output levels available in TTL or ECL formats.
| Maximum Input Frequency | 1.2GHz |
|---|---|
| Dividing Ratio | 1/64, 1/128, 1/256 |
| Package Type | SIP7 pin |
| Operating Temperature | -20~75 °C |
| Weight | 0.72g (Typ.) |
The available dividing ratios are 1/64, 1/128, and 1/256.
The devices support both TTL and ECL output levels.
