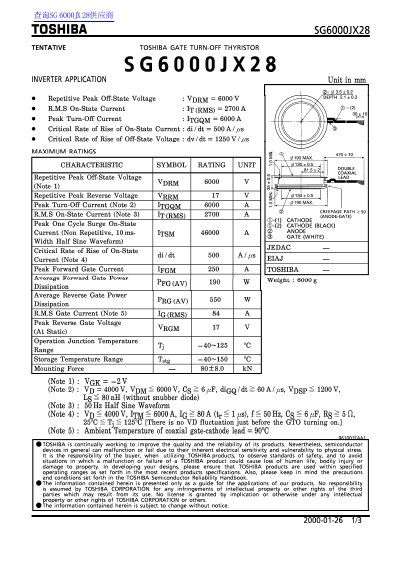

This document is a technical specification sheet for the Toshiba SG6000JX28, a 6000V repetitive peak off-state voltage Gate Turn-Off (GTO) thyristor designed for inverter applications. The datasheet lists maximum ratings such as RMS on-state current of 2700 A and peak turn-off current of 6000 A.
| Repetitive Peak Off-State Voltage (VDRM) | 6000 V |
|---|---|
| RMS On-State Current (ID(RMS)) | 2700 A |
| Peak Turn-Off Current (ITGQM) | 6000 A |
| Critical Rate of Rise of On-State Current (di/dt) | 500 A/ us |
| Critical Rate of Rise of OffState Voltage (dv/dt) | 1250 V/ us |
| Operation Junction Temperature (Tj) Range | -40~125 °C |
| Storage Temperature Range (Tstg) | -40~150 °C |
The critical rate of rise of on-state current is rated at 500 A/ us.
