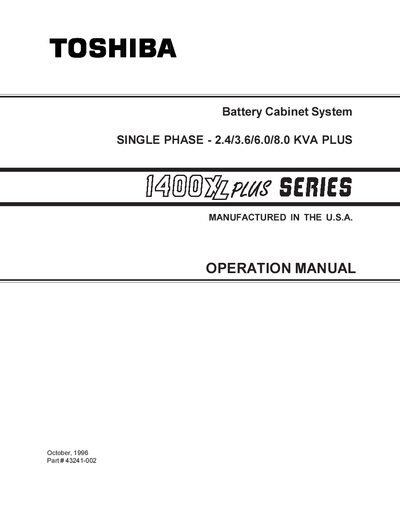

This operation manual covers the safe installation, connection, and upkeep of the Toshiba 1400 XL PLUS Series battery cabinet used with UPS systems. It includes detailed safety warnings, wiring diagrams, and recommended maintenance procedures.
Key sections include safety instructions, inspection and storage guidelines, UPS power connections, battery wiring and breaker sizing, preventative maintenance, external layout dimensions, and Emergency Power Off (EPO) connections.
| Maximum ambient operating temperature | 40 °C |
|---|---|
| Nominal battery voltage (2.4 KVA) | 96 VDC |
| Nominal battery voltage (3.6 KVA) | 144 VDC |
| Recommended storage temperature range | -20 °C to 40 °C |
| Breaker rating for UC3‑BC‑0230 | 32 A 250 VDC |
| Recommended wire size for EPO (2.4 KVA) | 18 AWG |
The battery system may be operated up to a maximum ambient temperature of 40 °C.
When stored at 30 °C to 40 °C, the batteries should be recharged every 3 months.
The models UC3‑BC‑0230, UC3‑BC‑0330, and UC3‑BC‑0630 do not require a +Bus connection.
A 14 AWG wire is recommended for the +Bus connection on a 6.0 KVA battery cabinet.
