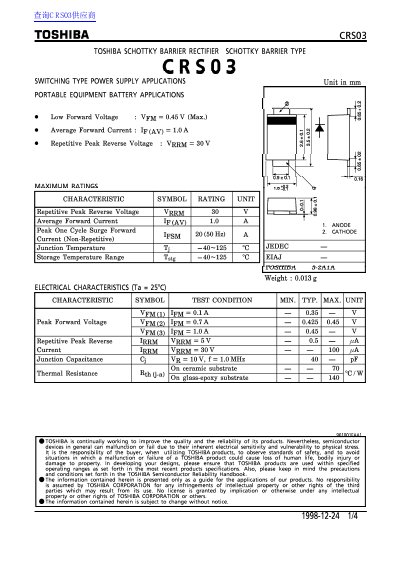

This document is a technical datasheet for the Toshiba CRS03 Schottky barrier rectifier. It specifies that the device is designed for switching type power supply applications and portable equipment battery applications.
The datasheet provides detailed maximum ratings, including a repetitive peak reverse voltage of 30V and an average forward current of 1.0A. It also lists electrical characteristics such as junction capacitance and thermal resistance on different substrates.
| Repetitive Peak Reverse Voltage | 30 V |
|---|---|
| Average Forward Current | 1.0 A |
| Junction Temperature Range | -40~125 °C |
| Storage Temperature Range | -40~125 °C |
It is intended for switching type power supply applications and portable equipment battery applications.
The typical peak forward voltage (VFM) at an average current of 1.0A is 0.45 V.
