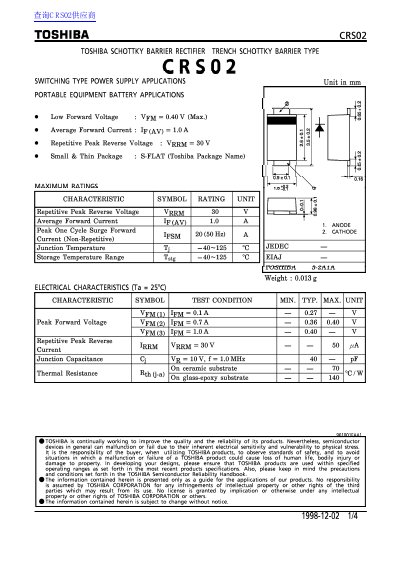

This document is a technical datasheet for the Toshiba CRS02, a switching type power supply application component. It describes the device as a Trench Schottky Barrier Rectifier with an S-FLAT package design.
The datasheet provides specific operating parameters including a maximum repetitive peak reverse voltage of 30V and an average forward current of 1.0A. It includes detailed electrical characteristics, thermal resistance values for different substrates, and graphical data regarding power dissipation and junction capacitance.
| Repetitive Peak Reverse Voltage | 30 V |
|---|---|
| Average Forward Current | 1.0 A |
| Junction Temperature Range | -40~125 °C |
| Storage Temperature Range | -40~125 °C |
| Peak Forward Voltage (Typical) | 0.40 V |
The device can withstand a repetitive peak reverse voltage of up to 30 V.
The recommended soldering land size is 6 mm x 6 mm.
