TOSHIBA CRS01 handbook

Brand: Toshiba
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 151 KB
Published: 01 August, 2012
Updated: 01 August, 2012
MD5 checksum: AE389AB2E49A563254C88E02930D5245
PDF: TOSHIBA CRS01 handbook PDF

About this manual

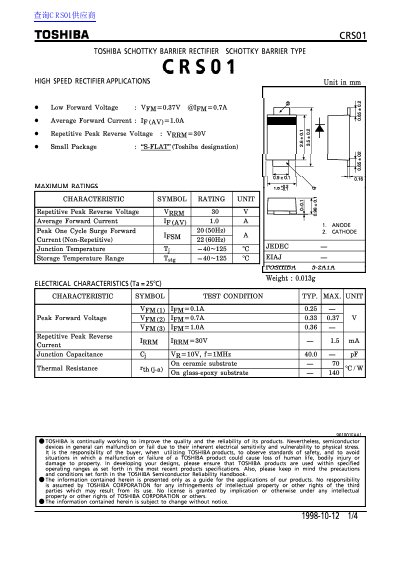

This document is a datasheet for the TOSHIBA CRSO1 Schottky Barrier Rectifier. It specifies that the device operates with a repetitive peak reverse voltage of 30V and an average forward current of 1.0A. The component is housed in a small 'S-FLAT' package designed for high-speed rectifier applications.

What's inside

Maximum Ratings
Electrical Characteristics
Marking
Thermal Resistance
Transient Thermal Impedance
Junction Capacitance
Average Forward Power Dissipation
Peak Surge Forward Current

Specifications

Repetitive Peak Reverse Voltage	30 V
Average Forward Current	1.0 A
Junction Temperature Range	-40~125 °C
Storage Temperature Range	-40~125 °C
Typical Peak Forward Voltage	0.33 V
Typical Junction Capacitance	40.0 pF

Frequently asked questions

What is the maximum repetitive peak reverse voltage for the CRSO1 rectifier?

The device has a maximum repetitive peak reverse voltage rating of 30 V.

What is the maximum average forward current the CRSO1 can handle?

The maximum average forward current rating is 1.0 A.

What is the maximum junction temperature for the CRSO1 rectifier?

The maximum junction temperature is 125 °C.
