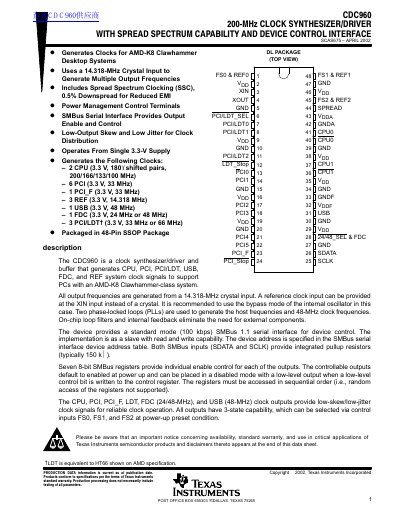

The CDC960 is a clock synthesizer/driver and buffer that generates CPU, PCI, PCI/LDT, USB, FDC, and REF system clock signals to support PCs with an AMD-K8 Clawhammer-class system. All output frequencies are generated from a 14.318-MHz crystal input.
The CDC960 is a clock synthesizer/driver and buffer that generates CPU, PCI, PCI/LDT, USB, FDC, and REF system clock signals to support PCs with an AMD-K8 Clawhammer-class system. All output frequencies are generated from a 14.318-MHz crystal input, or an external reference clock at the XIN input. The device utilizes two phase-locked loops (PLLs) to generate host frequencies and 48-MHz clock frequencies, with on-chip loop filters eliminating the need for external components.
| Operating Supply Voltage | 3.3 V |
|---|---|
| Package Type | 48-Pin SSOP |
| PCI Output Frequency | 33 MHz |
| USB Output Frequency | 48 MHz |
| FDC Output Frequencies | 24 MHz or 48 MHz |
| REF Output Frequency | 14.318 MHz |
| SMBus Interface Speed | 100 kbps |
| Crystal Input Frequency | 14.318 MHz |
Yes, it includes Spread Spectrum Clocking (SSC) with 0.5% downspread for reduced EMI.
The device operates from a single 3.3-V supply.
It is packaged in a 48-Pin SSOP package.
